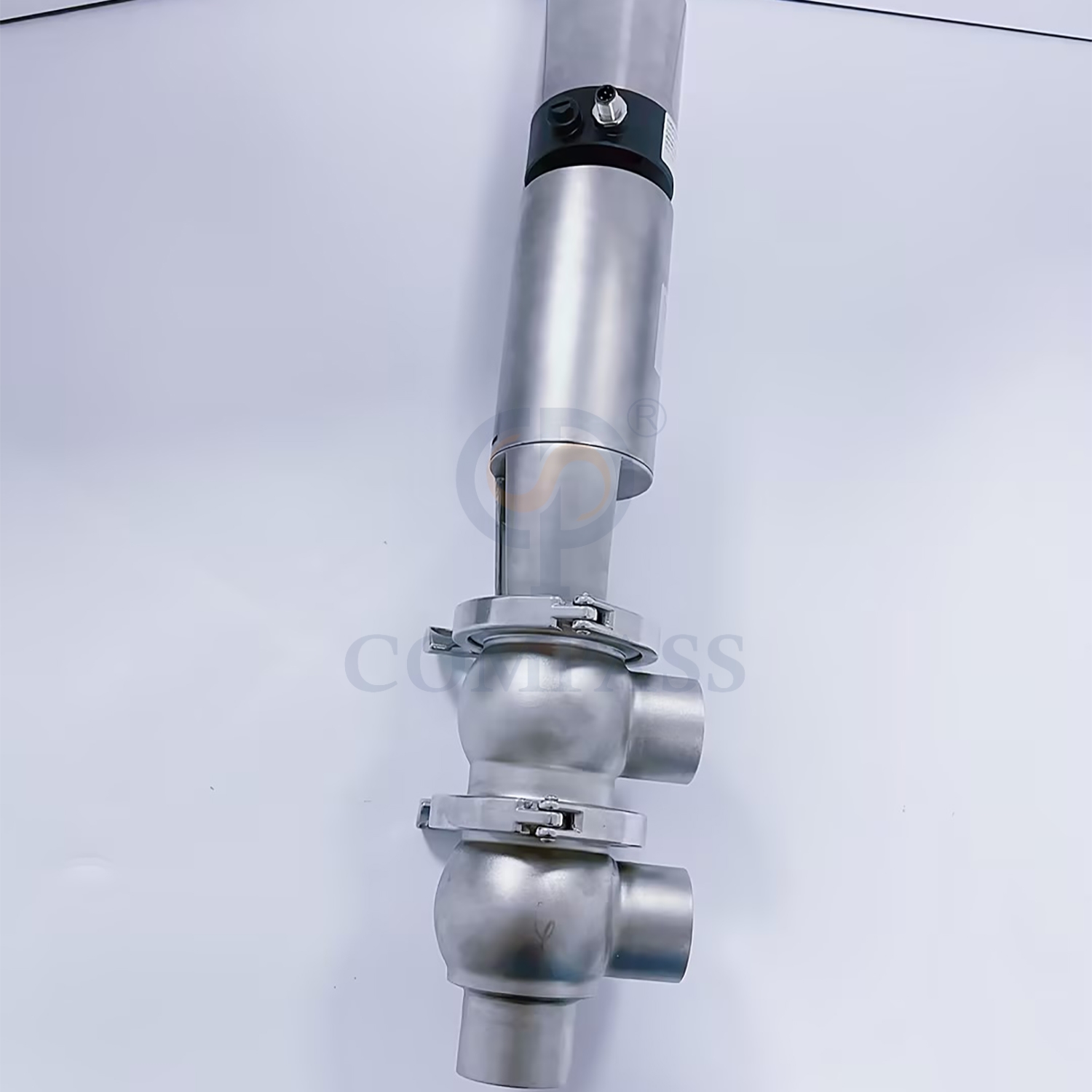

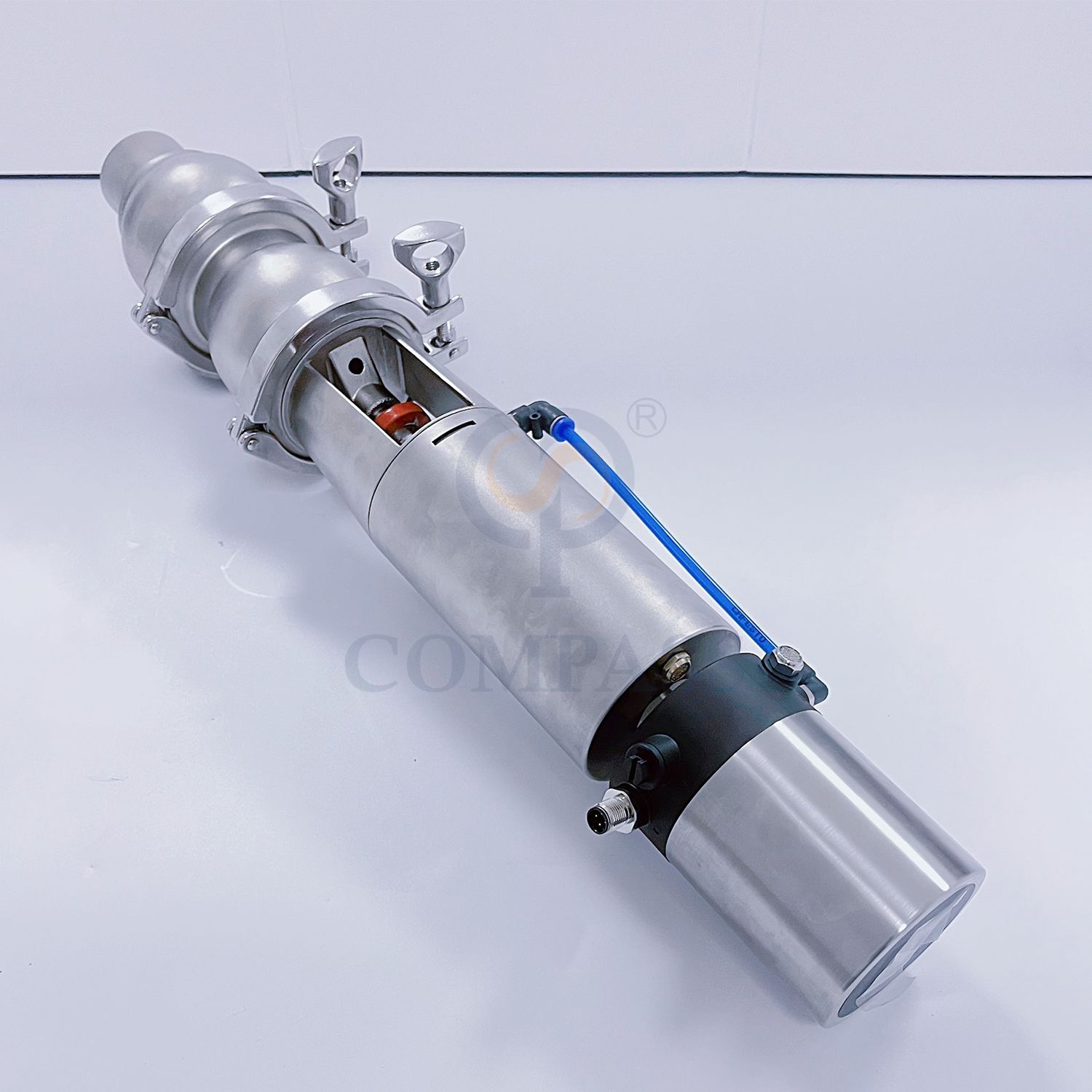

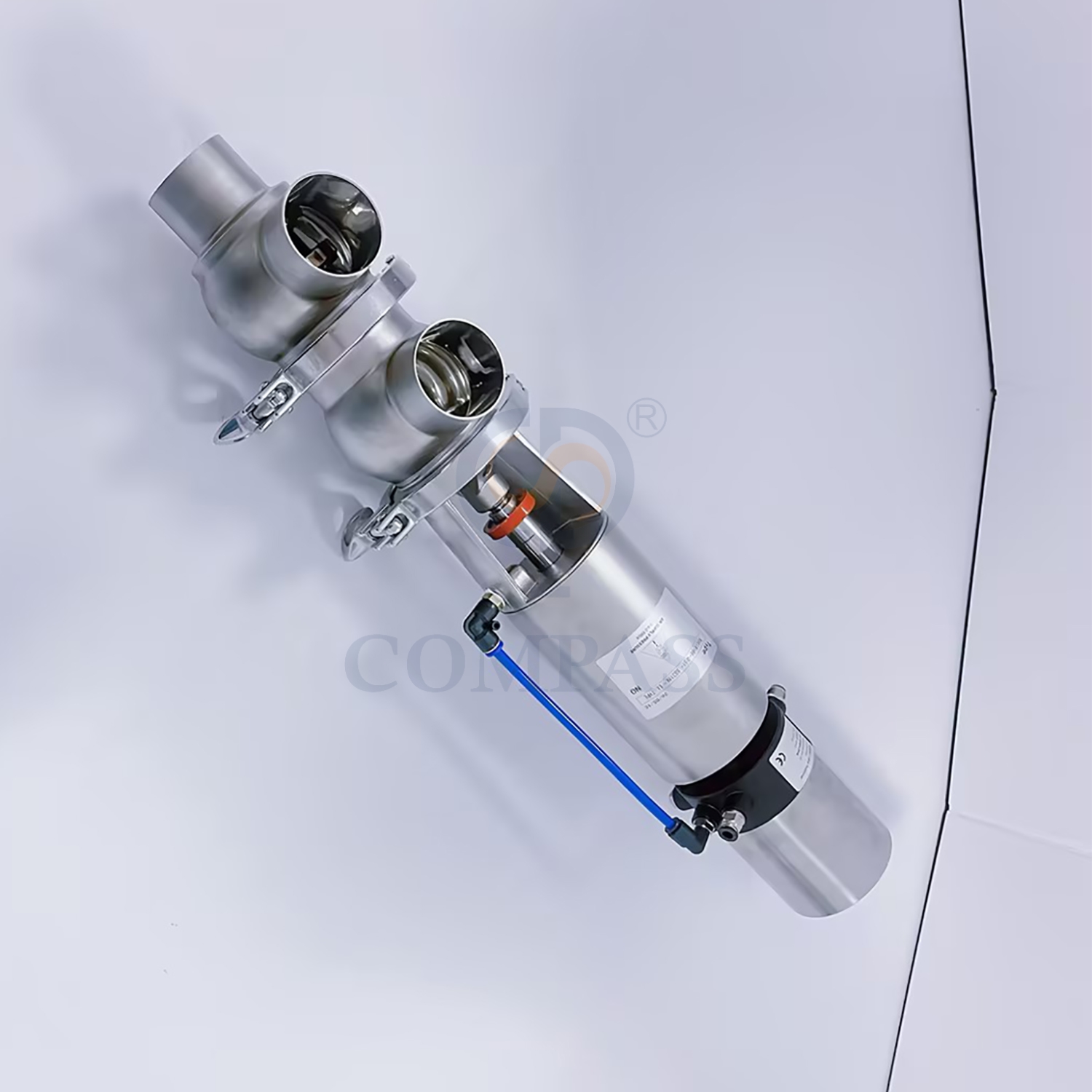

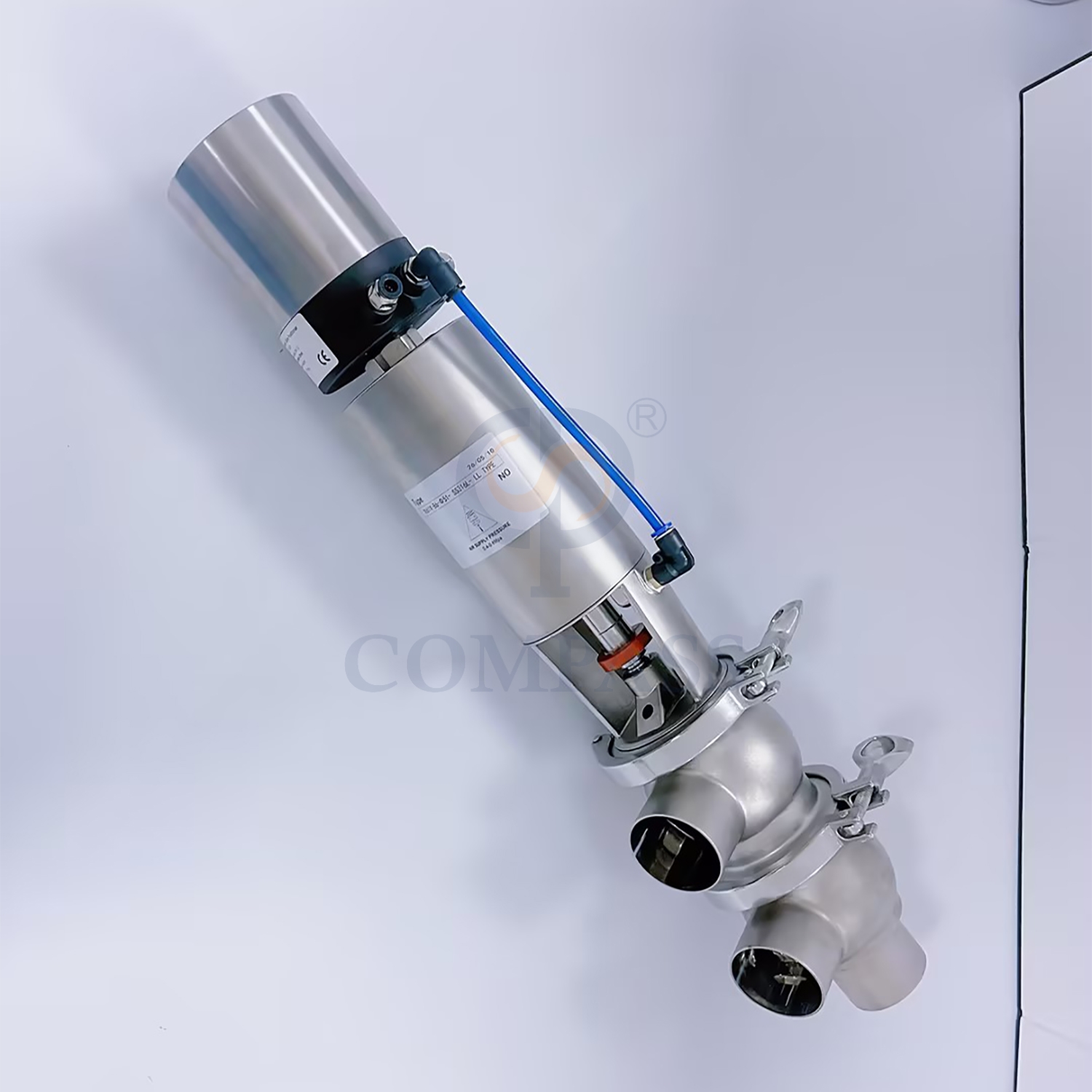

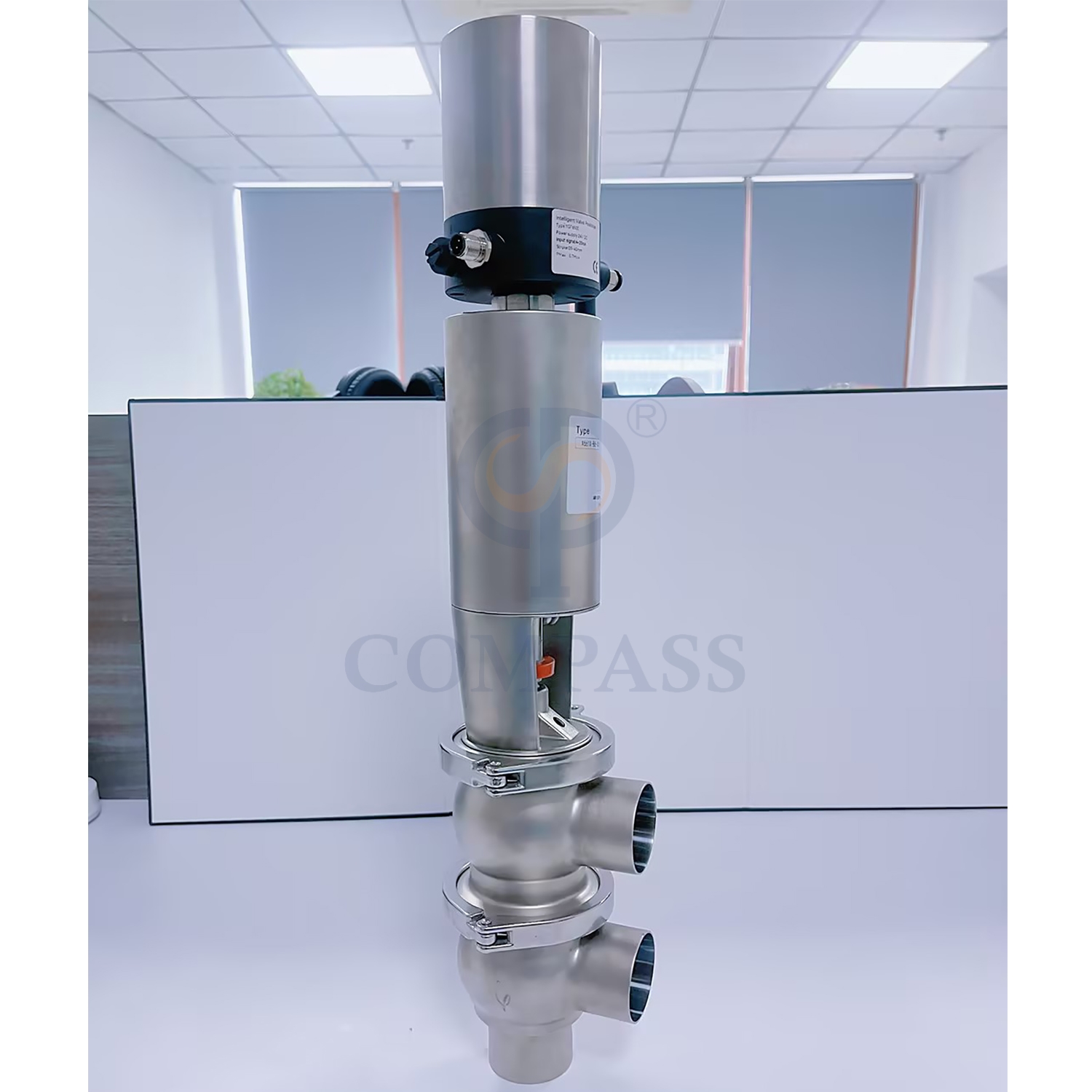

50.8MM Sanitary Stainless Steel 316L 21 Model LL Type Pneumatic Three-Way Weld Diverter Valve with Intelligent Valve Positioner

Sanitary Diverter Valves can be actuated either manually or pneumatically. The series of Sanitary Pneumatic Flow Division Valves makes major medium reaching the purpose of revising or end stop, because the good sealability and cleanability, they are extensively use different sanitary industry areas. They can be fitted with control tops and proximity. It is widely applied to many fields, such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.
Sanitary Diverter Valves have two types valves, including of cut-off type and reversing types. The cut-off type can be made of two or three pipeline connector. The reversing type can be made of three to five pipeline connector. Their variety fully satisfied the demands of market.

Modelo:
2Inch 50.8MM
Marca do Produto:
XUSHENG
Código Do Produto:
010604A02A0201A51

Tamanho:	1/2"-12",DN15-DN300
Status de disponibilidade:

Quantidade:



Inquérito Adicionar a cesta

The Details of Product

Standard	SMS,DIN
Material Contact Parts	SS304/SS316L(1.4301/1.4404)	Provided with material inspection report
Material Non-contact Parts	SS304(1.4301)
Size	1/2"-4", DN10-DN100

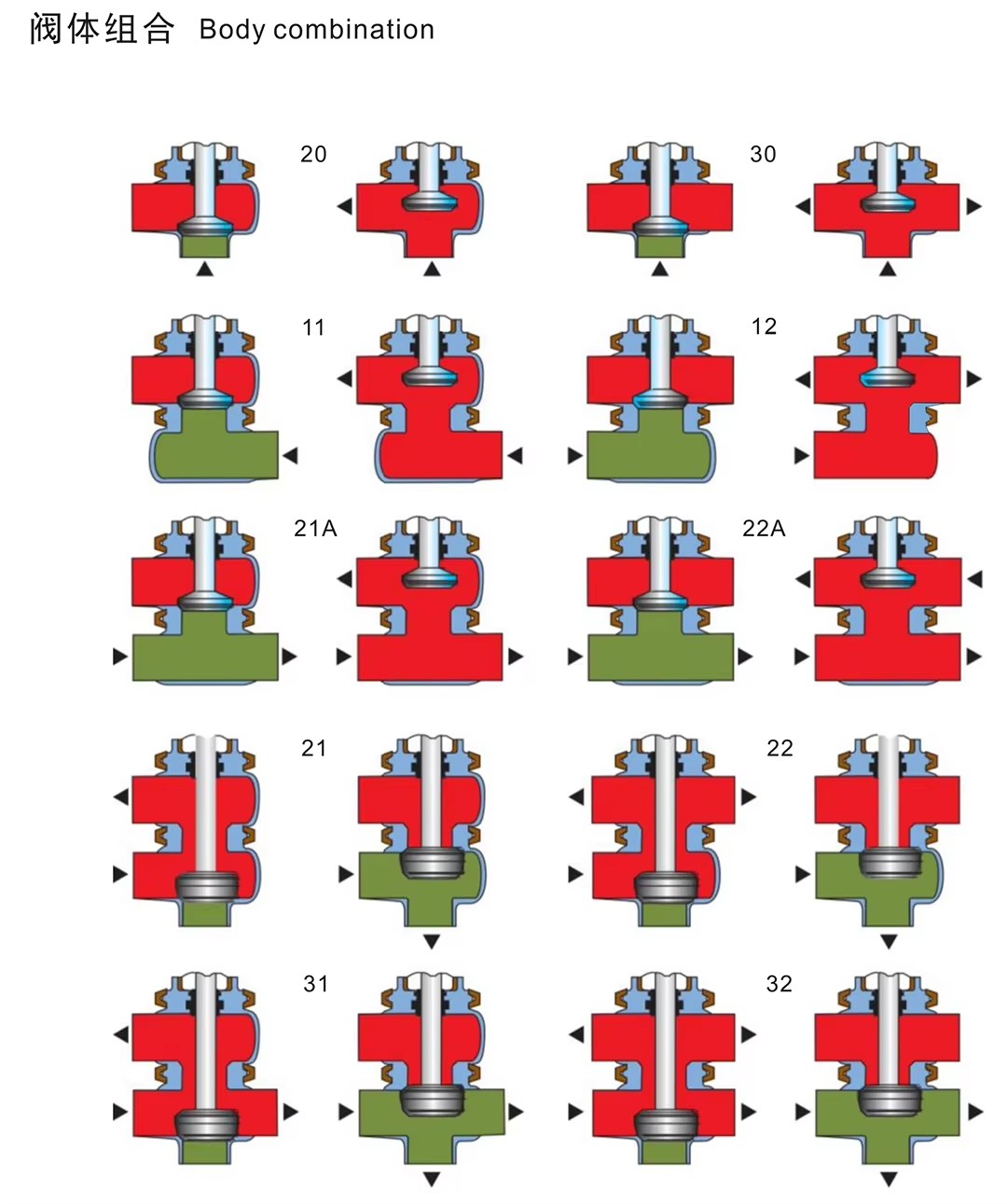

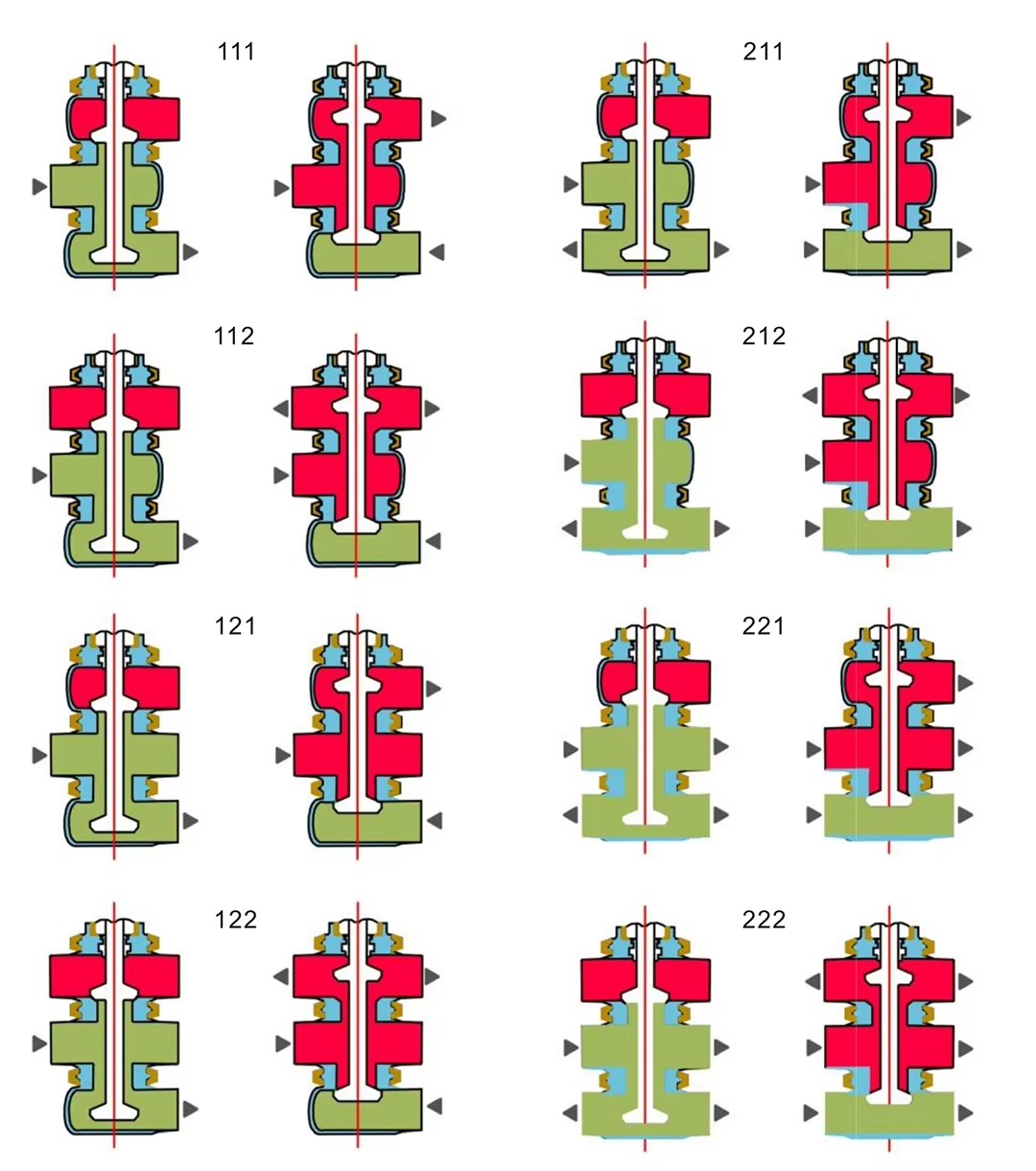

Body Combination	20 Model,30 Model,11 Model,12Model,21A Model,22A Model,21 Model,22 Model,31Model,32 Model, 111 Model,112 Model,121 Model,122Model,211 Model,212 Model,221 Model,222 Model
Connection	Butt-weld, Tri-clamp,Male Thread,Female-Male Threaded,Union,Weld-Thread,Flange
Power Option	Manual Operated
	SS Pneumatic Actuator
	Position Sensor, C-top Controller, C-top Controller (AS-I)
Seal Material	Silicone,EPDM,FKM,Buna. All seals material comply with FDA21CFR117.2600
Working Pressure	≤10bar(145psi)
Supply Pressure for Air Actuator	5~8(72.52psi~116psi)
External Surface Treatment Internal Surface Treatmen	Ra32~64uin(0.8~1.6um) Ra16~32uin(0.4~0.8um)

Description of Commodity: 50.8MM Sanitary Stainless Steel 316L 21 Model LL Type Pneumatic Three-Way Weld Diverter Valve with Intelligent Valve Positioner

Technical Specifications

Max. pressure: 10bar

Min. pressure: 0.2bar

Temperature range：

EPDM: -5 ~ 212°F(-20 ~ 100℃)

Silicone: -31 ~ 248°F(-35~ 120℃)

FKM:10~ 392°F(-12.2 ~ 200℃)

Options

1. The gasket can be Silicone,EPDM,FKM,Buna. All seals material comply with FDA21CFR117.2600

2.Connection can be Butt-weld,Tri-clamp,Male Thread,Female-Male Threaded,Union,Weld-Thread,Flange or others upon request.

3.Power operated: Manual,SS Pneumatic Actuator,Position Sensor, C-top Controller,C-top Controller (AS-I)

4.Pneumatic head: Normally Closed(NC)-Air to Open,Spring to Close, Normally Open(NO)-Air to Close,Spring to Open

Design Features

1. Various standards can be provided: SMS,DIN

2. Available in sizes from 1/2"-4", DN10-DN100

3. Seals comply with FDA 21CFR 177. 2600. 4.The valve body can be customized with a wide selection of different connections.

Quality requirement for compressed air used in actuator

Compressed air connection: Furnish air pipe with air connector R1/8"

Maximum particle size: 0.01mm

Maximum oil content: 0.08ppm

Dew point: 10℃ or lower below atmospheric temperature

Maximum water content: 7.5g/kg

How to order diverter valve?

1.What's standard for diveter valves? Such as DIN, SMS

2.What's material, such as SS304 or SS316L ?

3.What’s available size, such as 1inch to 4inch, DN25 to DN100 ?

4.What’s connection end, such as butt-weld, tri-clamp, male threaded or female threaded? 5.What’s body combination, such as 20model, 21model, 30model, 22model?

6.What’s power, such as manual, pneumatic actuator or control head 24v?

7.What's material of seal, such as EPDM?
